Dash and 6 Gauges Kit Combo - SAVE $100

Bundle and SAVE $100

Dash and Gauges are both "Built to order" items

Lead Time: Ships in around 2-3 weeks (items may ship separately)

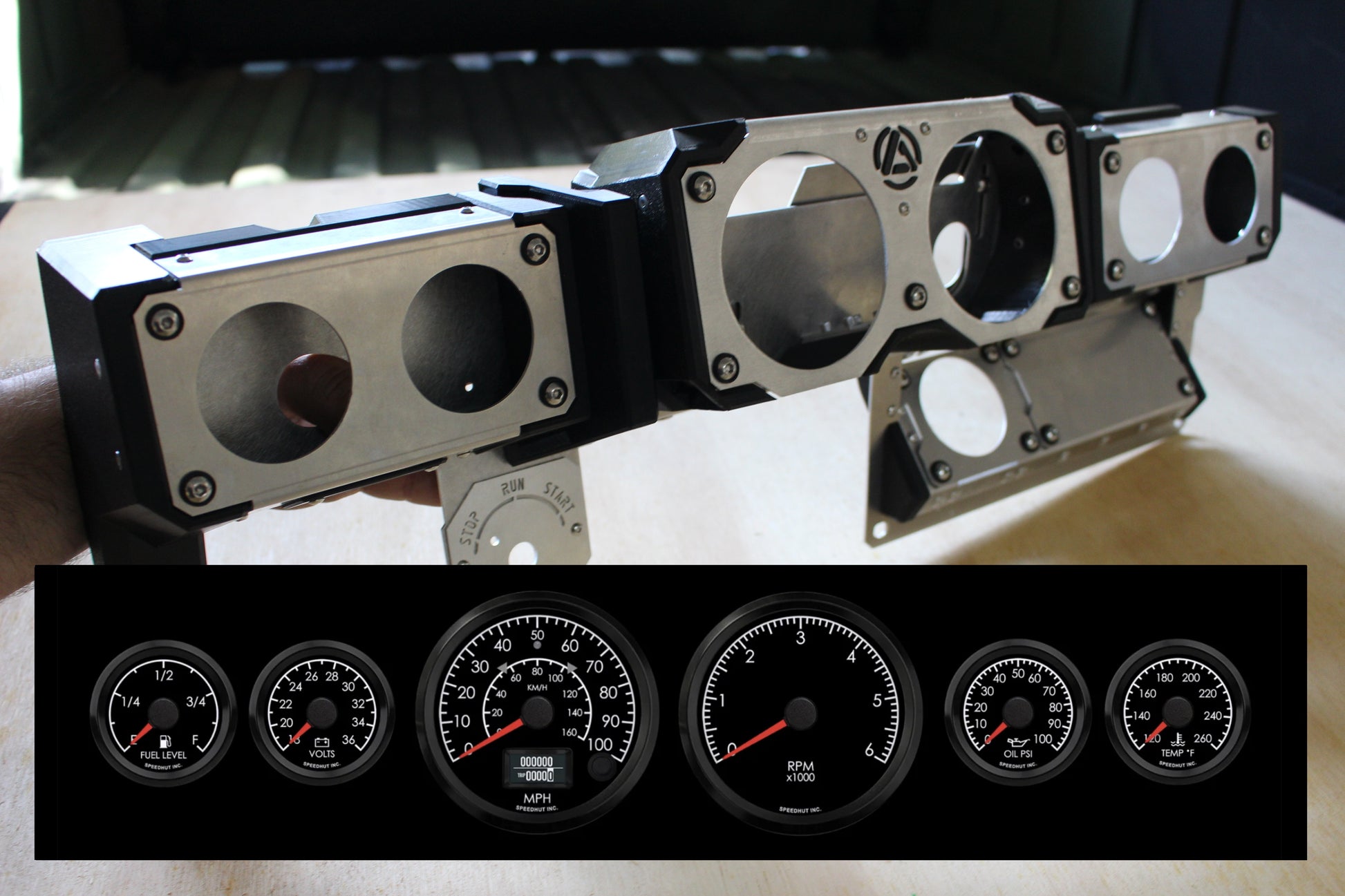

Front Dash Kit

Our Dash's main features:

 - Puts the instrument gauges in a more practical location for a better view.

- Speedometer and Tachometer center bezel is adjustable UP/DOWN to keep the gauges in your comfortable line of sight while having your preferred steering wheel height.

- Provisional location for a hidden switch (not included) to be used for your preferred cutoff accessory.

- Minimal installation requirements, fits over your existing aluminum dash bracket.

- A great addition for added comfort and to personalize your truck.

Please note the following:

- The gauges openings and the backspace are designed for SpeedHut's humvee® 6 gauge kit (Not Included), and American Machine Humvee® 6 gauge kit from SpeedHut (Not Included).

- Mount your SpeedHut speedometer gauge to the left side of the center bezel if its wires come out from the top.

- If the the speedometer's wires come out of the bottom, then mount it to the right side of the center bezel.

- Does not fit OEM humvee Gauges.

- The dash only fits the humvee dash frame, and NOT the Hummer H1.

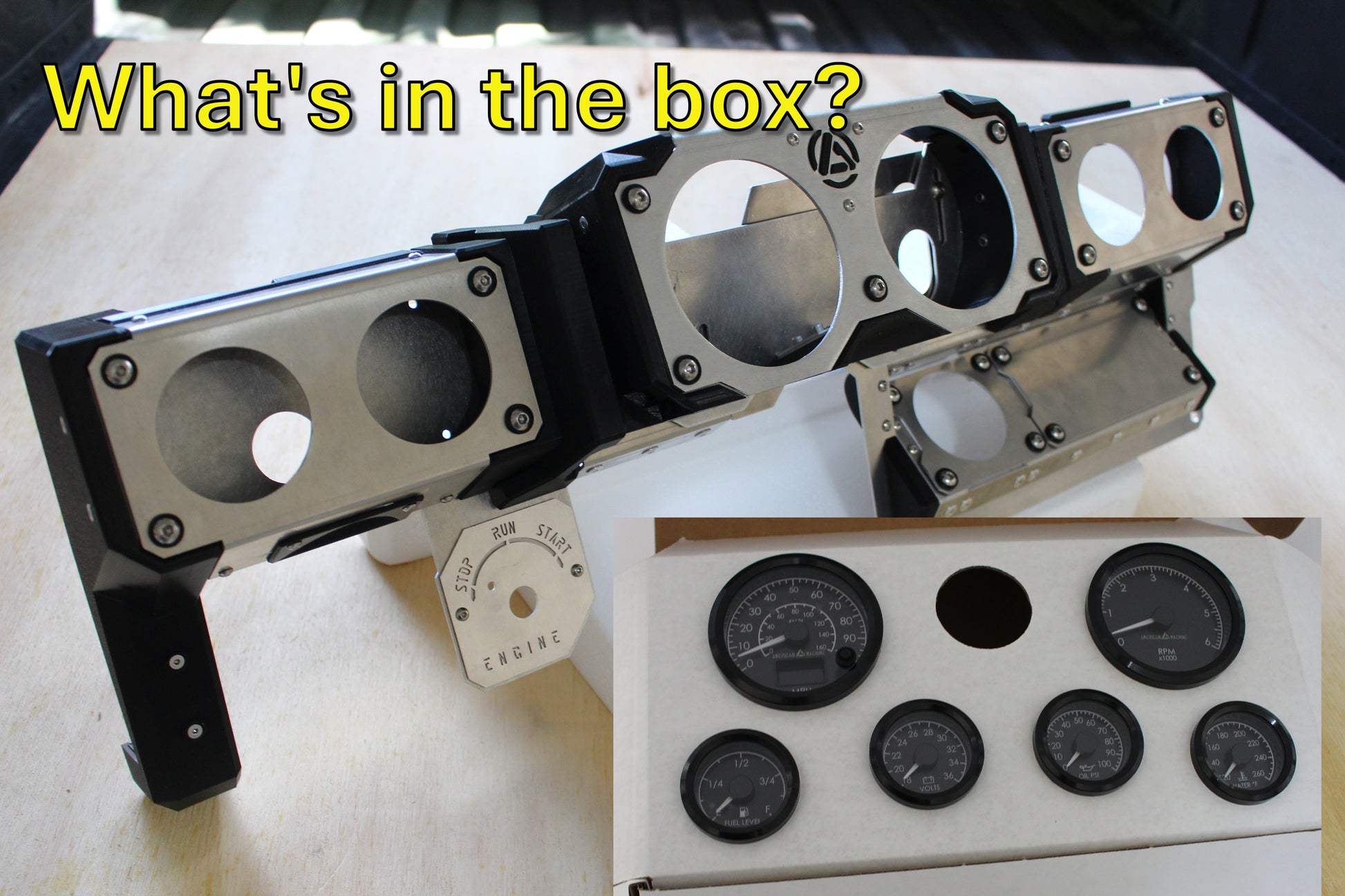

What's in the box?

Please see the item's photos that states "What's in the box?"

Materials:

- Main structural frame and gauge bezels are made entirely out of aluminum.

- Plastic Moldings are made out of 3D printed ABS plastic (non structural/only decorative).

Finish:

The dash kit finish is raw unfinished aluminum and raw unfinished ABS plastic. Like any raw unfinished products, proper finishing is recommended for best results. We recommend; scuffing/sanding, cleaning/degreasing, priming (primer fillers), sanding and cleaning again, painting (adequate number of coats), and top coat . . .  or finish to your preference.

The dash is designed and built by: American Machine

6 Gauge Kit - Humvee® - GPS Speedometer, Diesel Tachometer, Oil psi, 18-36 Volt, Water Temp, Fuel Level

To guarantee that you get the latest up to date gauges specially built for you with minimal shipping stops; this is a "built to order item".

Lead Time: Ships in around 2-3 weeks.

What's in the box?

GPS Speedometer (Fits into 3.375" / 85mm dash hole).
Tachometer (Fits into 3.375" / 85mm dash hole).
Water Temperature Gauge (Fits into 2.062" / 52mm dash hole).
18-36 Volt Gauge (Fits into 2.062" / 52mm dash hole).
Oil Pressure Gauge (Fits into 2.062" / 52mm dash hole).
Fuel Level Gauge (Fits into 2.062" / 52mm dash hole).

Gauge Features:

• No additional sensors needed; uses the existing OEM sensors.
• No additional modification needed to the wires length to reach the driver's far left side (unique to our gauges).
• LED-lit dial
• Powered by 24 volt systems

Colors:  Day    - Black Background with White Numbers
             Night - Numbers LED Glow (Choose Color)
Humvee style ticks and Numbers
Pointer: Standard White (Glows Red)
Window: Flat

The Gauges are designed and built by: SpeedHut

Designed for use with military series HMMWVs (NOT compatible with the Hummer H1).
